SGP4 Orbital Propagation Prototype

A Python engineering prototype for satellite orbit prediction using the SGP4 model, built to understand orbital mechanics from first principles.

What It Does

• Parses Two-Line Element (TLE) sets and extracts orbital parameters
• Propagates satellite positions using the SGP4 algorithm
• Transforms coordinates between TEME, ECEF, and geodetic frames
• Handles propagation failures with automatic two-body fallback
• Wraps propagation in PyTorch for gradient-based analysis (experimental)

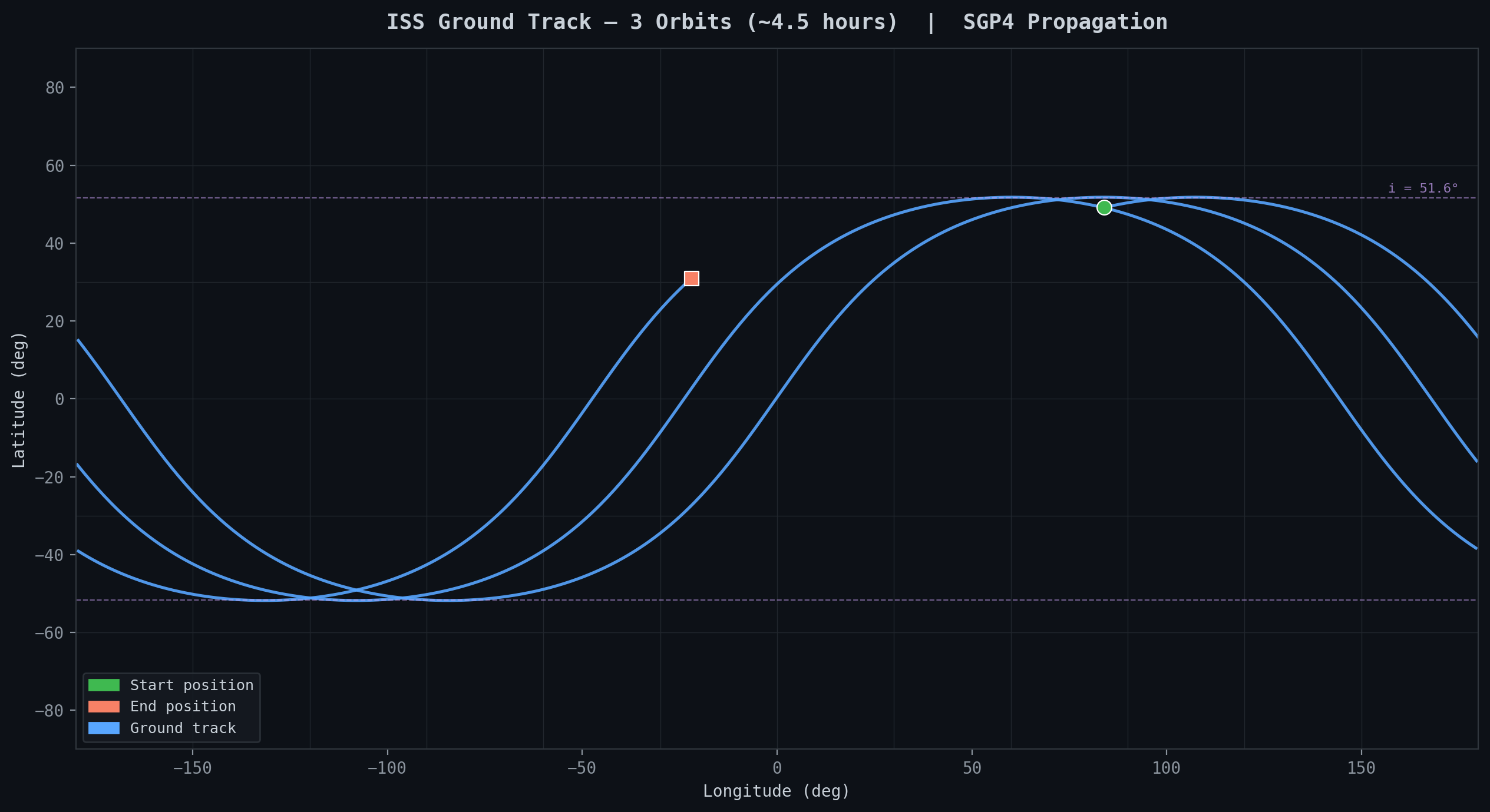

ISS Ground Track

ISS ground track over 3 orbits (~4.5 h).

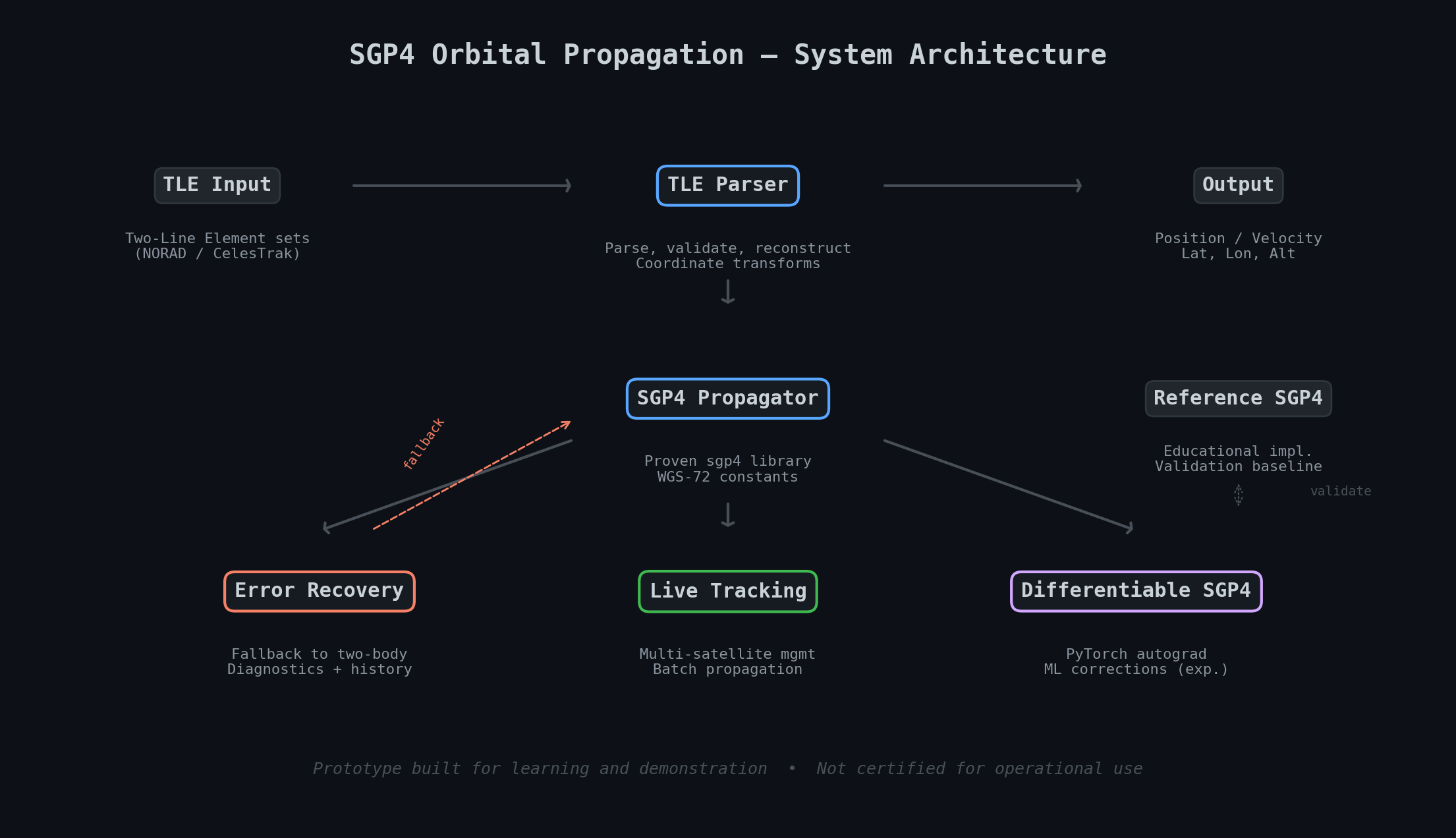

System Architecture

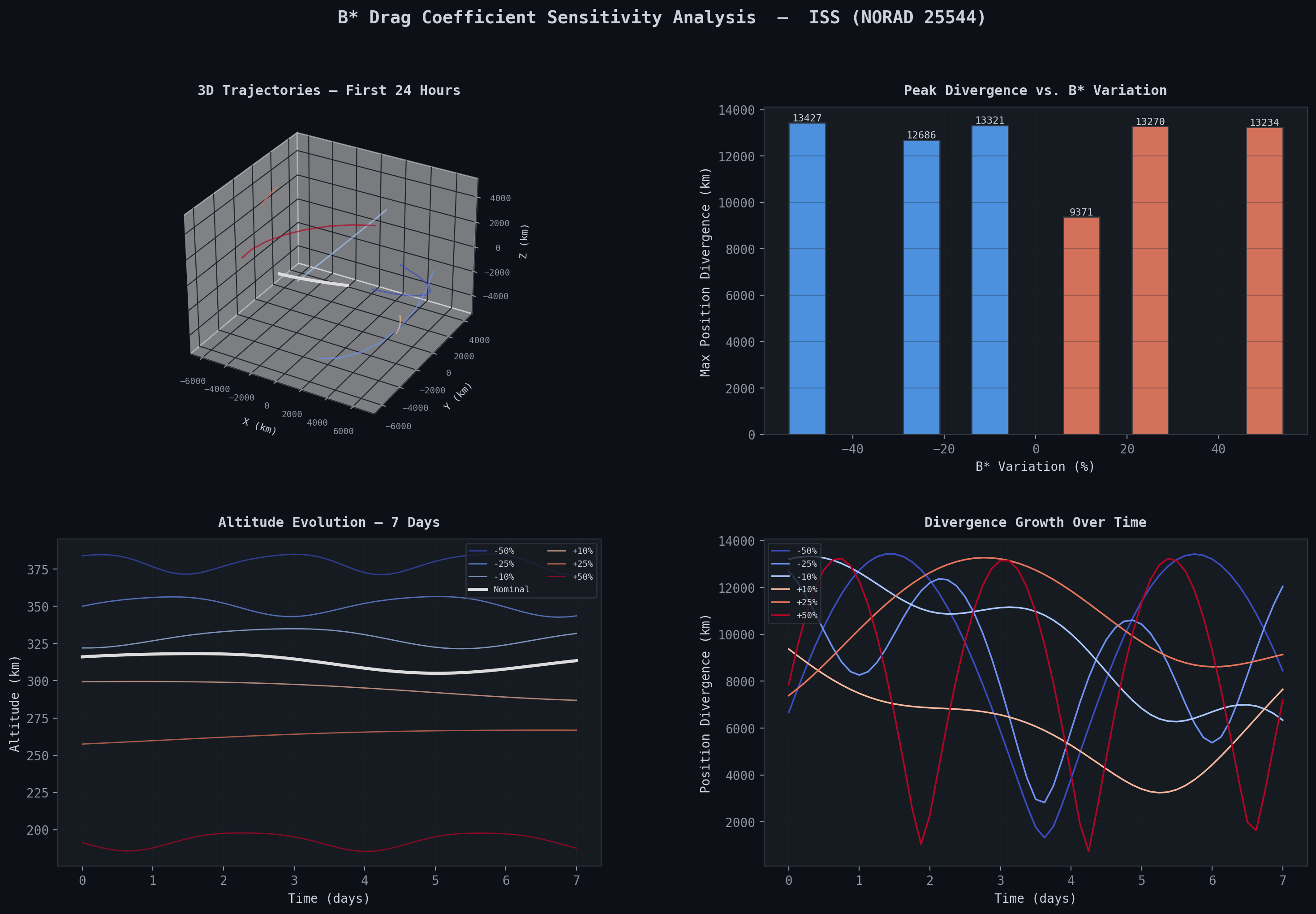

B* Drag Sensitivity

B varied ±50%; km-scale position divergence within days.*

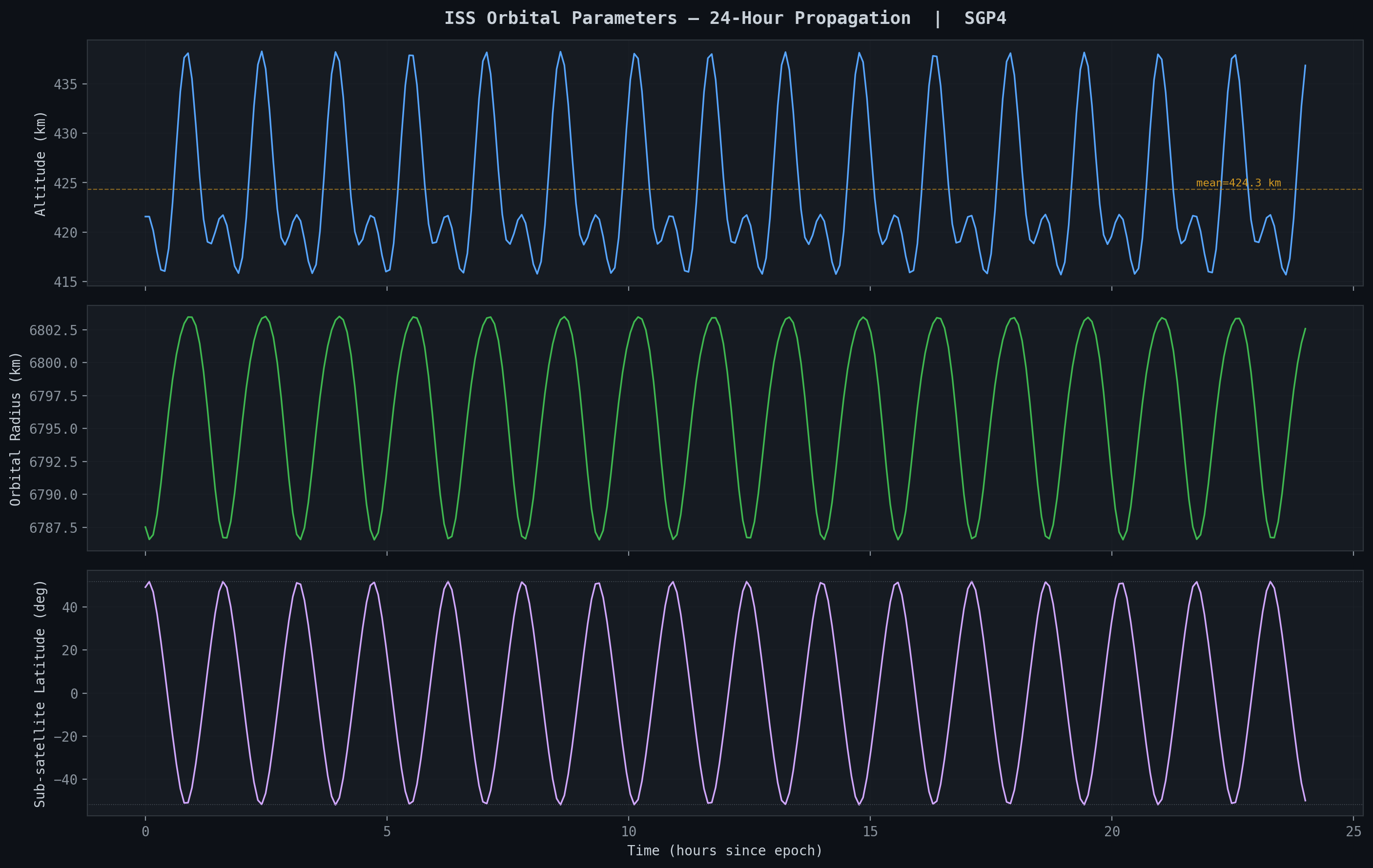

24-Hour Propagation

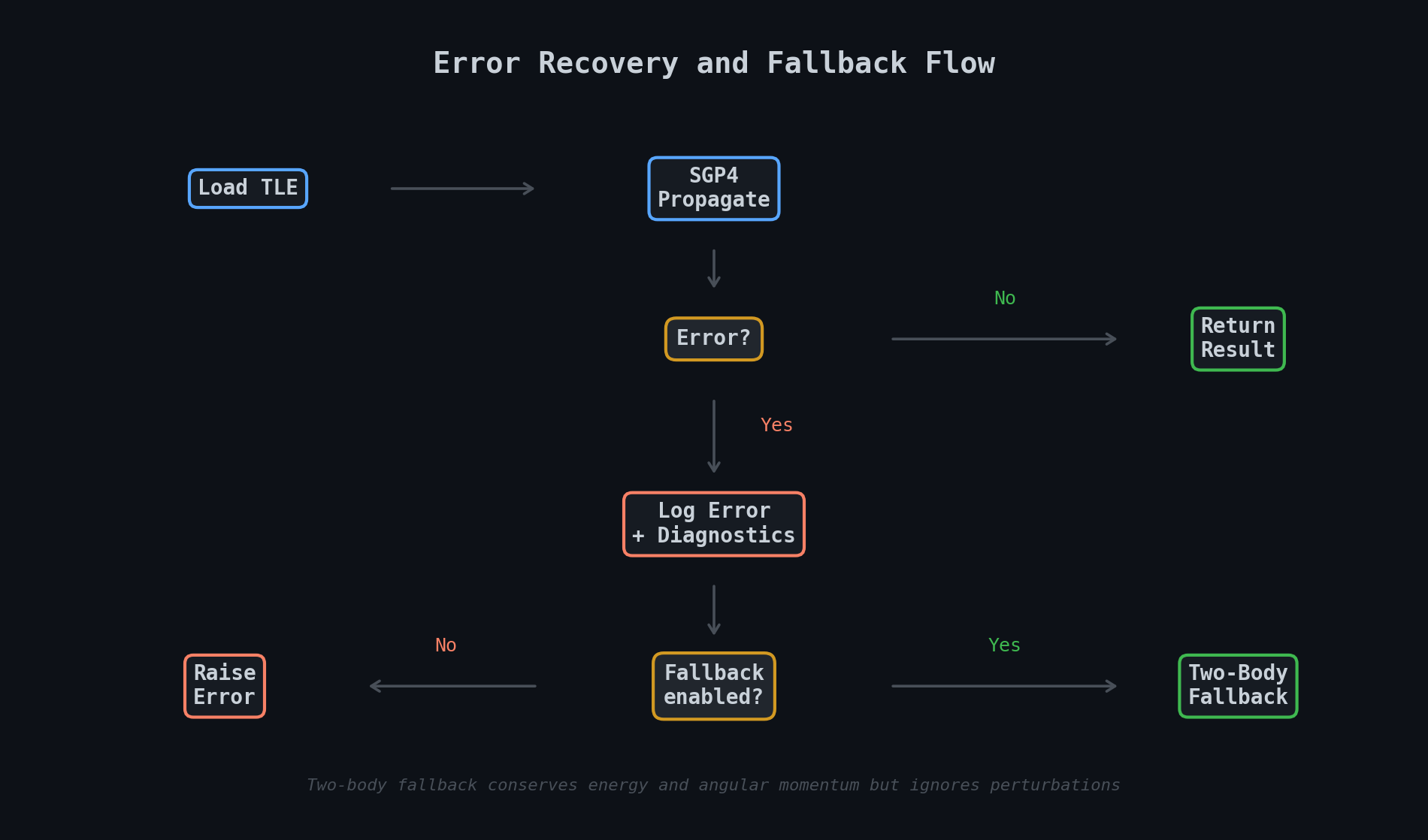

Error Recovery

When SGP4 fails, the system logs diagnostics and falls back to Keplerian propagation.

Quick Start

git clone https://github.com/ruddro-roy/SGP4.git
cd SGP4
pip install -r requirements.txt
python demo.py --sensitivity

Links

• Full documentation (README)
• Error Recovery Guide
• Source code

---

Engineering prototype, not certified for operational use.
